Mobile Scaffold Towers

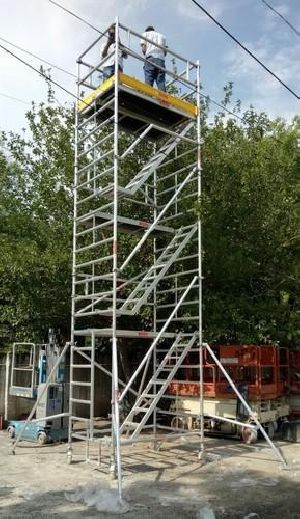

Mobile Scaffold Towers

We are identified as one of reputed Mobile Scaffold Towers Manufacturers, Suppliers & Exporters in the country. Our Mobile Scaffold Towers are popular in the market for high strength, rugged construction and durability. The Mobile Scaffold Towers can be availed in different specifications from us. We make available the wide range of sturdy Mobile Scaffold Towers at competitive prices.

Specifications of Our Mobile Scaffold Towers
  • H-Frames : Each H frames of 2 meters Height with spigot made-up of 50 mm dia Aluminium Alloy round pipes are connected with ‘T’ joints fully Aluminium welded. For maximum strength and durability.
  • Brasses Horizontal & Diagonal : Self auto locking snap braces spring loaded horizontally and diagonally fully Aluminium welded for maximum strength and durability.
  • Working Platform : Working platform made up of Aluminium Alloy rectangular sections fitted with side claws hook, lifting ring and trapdoor systems. fitted with Aluminium chequered plate (sheet)fully welded. It can placed at any required height.
  • Adjustable Outrigger : Adjustable outrigger (stabilizers) Spring loaded with handle adjustment can be connect to the structure of freestanding scaffolding towers fitted with clamps and rubber bungs.
  • Castor Wheel’s : Breakable castor wheels heavy duty with a load rating of 900 Kgs. With 12 inches adjustment for an even areas like steps, staircase and sloping rungs.
  • Staircase Ladder : Internal staircase ladder with flat non slip corrugated steps fitted with clamps and adjustable winged for easy access.
  • H Frames with spigot made up of 50mm dia Also pipes are connected with T joints Aluminium welded.
  • Working platform made up of rectangular section & claws with trapdoor could be placed at any required height.
  • Stair case Ladder with flat non slip corrupted steps fitted with claws and adjust able hinged detachable.
  • Adjustable Cantilever tor convenience fitted with clamps, safety railing and long platform for two persons only.
  • Breakable wheels heavy duly with 12" adjustment for uneven areas like steps, starecase and stoping ramp.
  • Auto Locking snap braces spring loaded horizontally diagonally Aluminium welded full strength.
  • Stabilizers can be connect to the structure with spring loaded clamps,handles & rubber bungs.
  • Safety Toe Board with 5" Height of hard wood. with paint or acrylic sheet detachable with clamps.
  • Store trolley with steel structure complete covered with two lockable doors,for wheels & toe bar handle.
  • Steel painted jacks system with 12" adjustment in base frame for heavy load and tighted scaffoldings.

Available Sizes : Free standing 6ft. to 60ft., Supported up to 500ft.

To enquire about the desired product(s), just check the box and then click “Inquiry Now” button which is provided below.


Steel Mobile Scaffolding (Iron) ( Model AL - 121 )

Steel Mobile Scaffolding (Iron) ( Model AL - 121 )

Description : Couplers system with pins scissor type cross bracing through welded pins locked by spring clips, gravity lock pins, Jacks in base frame with lockable wheels, steel walk board plank,Heighi adjustable.



Available Sizes : 5ft to 50ft Supported up to 500ft.



Item Code HH - AL-122 1

Item Code HH - AL-122 1

Item Code HH - AL-122 1Item Code HH - AL-122 1Item Code HH - AL-122 1



Item Code HH - AL-122 2

Item Code HH - AL-122 2

AL-122-2AL-122-2AL-122-2



Item Code HH - AL-122 3

Item Code HH - AL-122 3

AL-122-3AL-122-3AL-122-3
